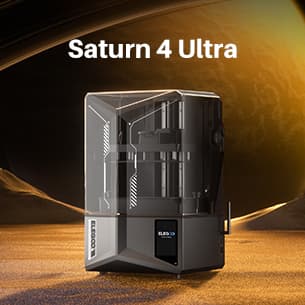

ELEGOO · Resin Printers

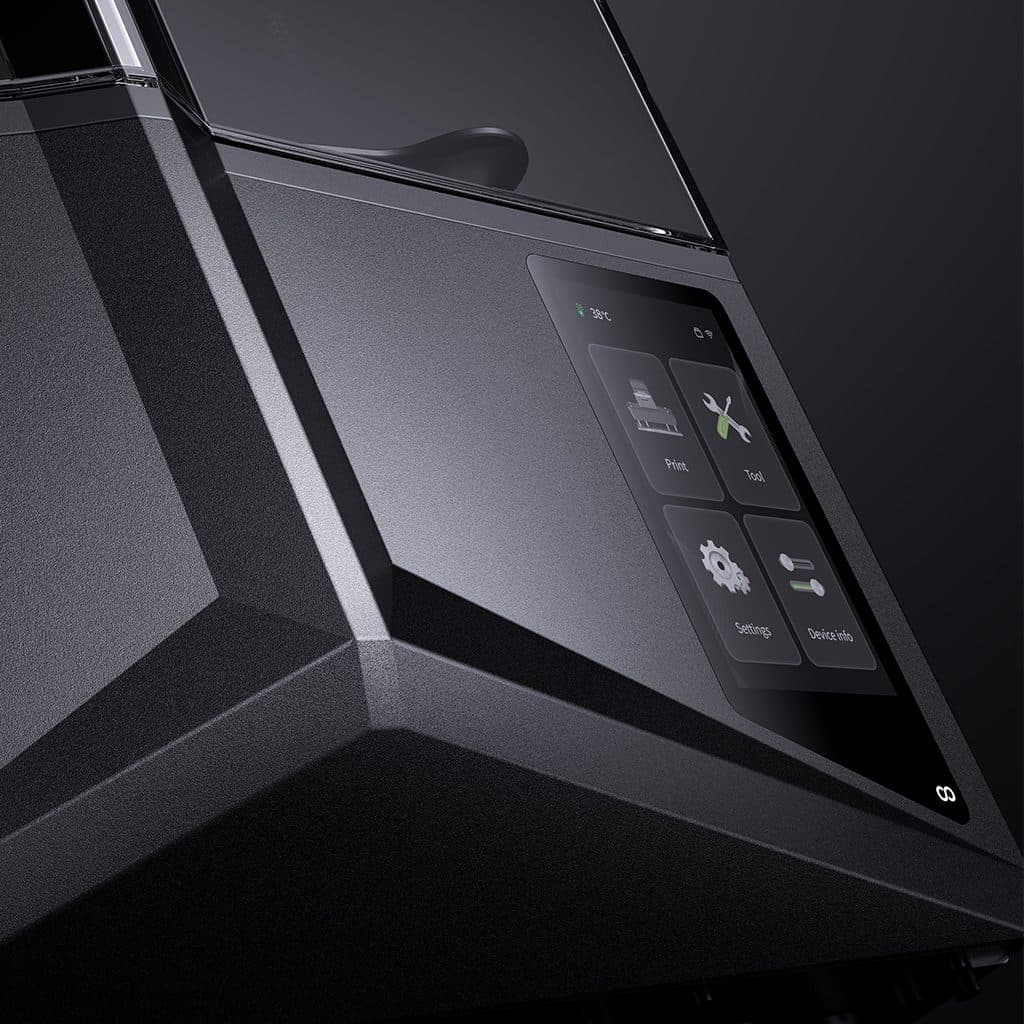

The Saturn 4 Ultra is designed for beginners, enthusiasts and professionals with the innovative design and advanced functionalities.
1 / 8218.88 x 122.88 x 220 mm3
Build volume
MAX 150 mm / h
Print speed
19*24um (11520*5120)
Resolution
10-inch 12K Mono LCD
Screen
The Saturn 4 Ultra is designed for beginners, enthusiasts and professionals with the innovative design and advanced functionalities. Its capabilities span across a wide range of industries, making it a reliable choice for various projects.

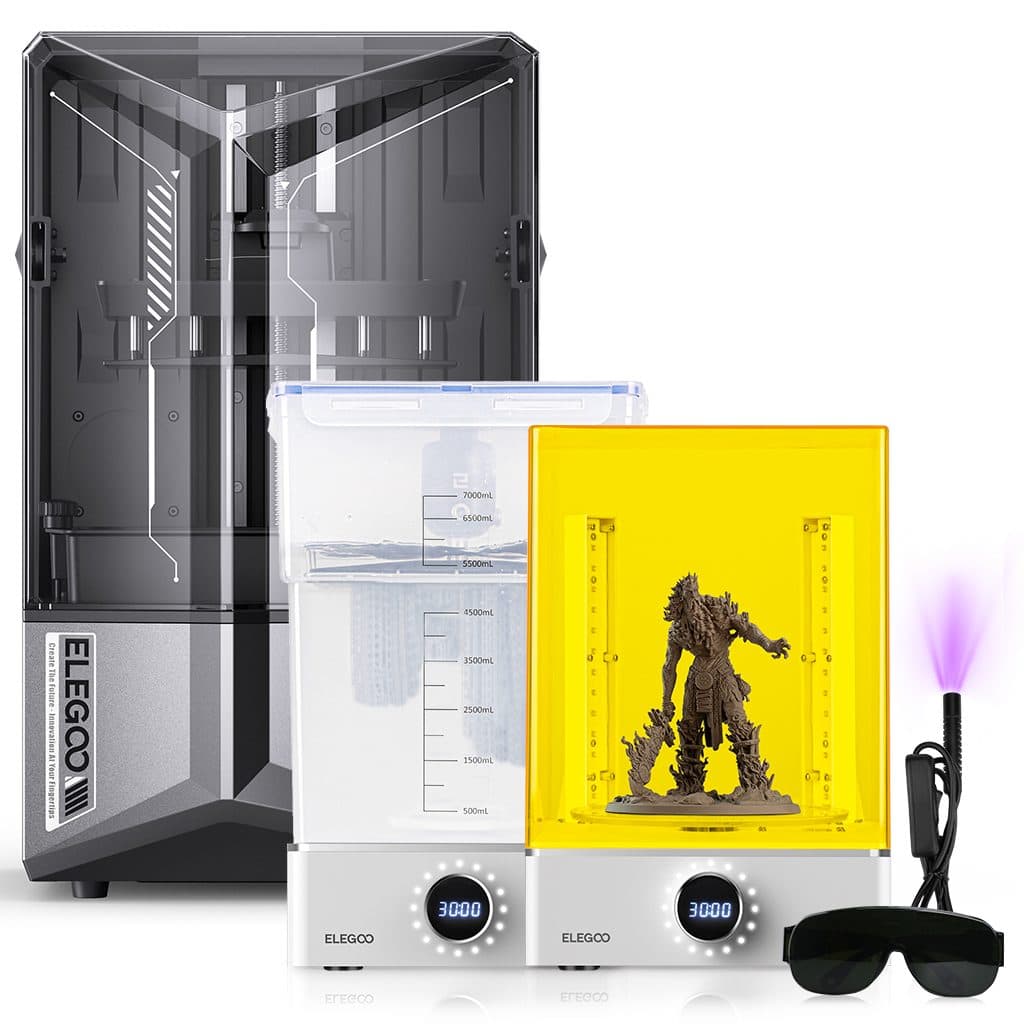

The machine, crated
With its standard tooling, cabling and starter consumables.
Commissioning on site
Assembled, levelled, calibrated and run to a first accepted part.
Operator handover
A working session with whoever will actually run it, not a manual.
Support after the invoice
Consumables, spares and a person who has seen this machine before.

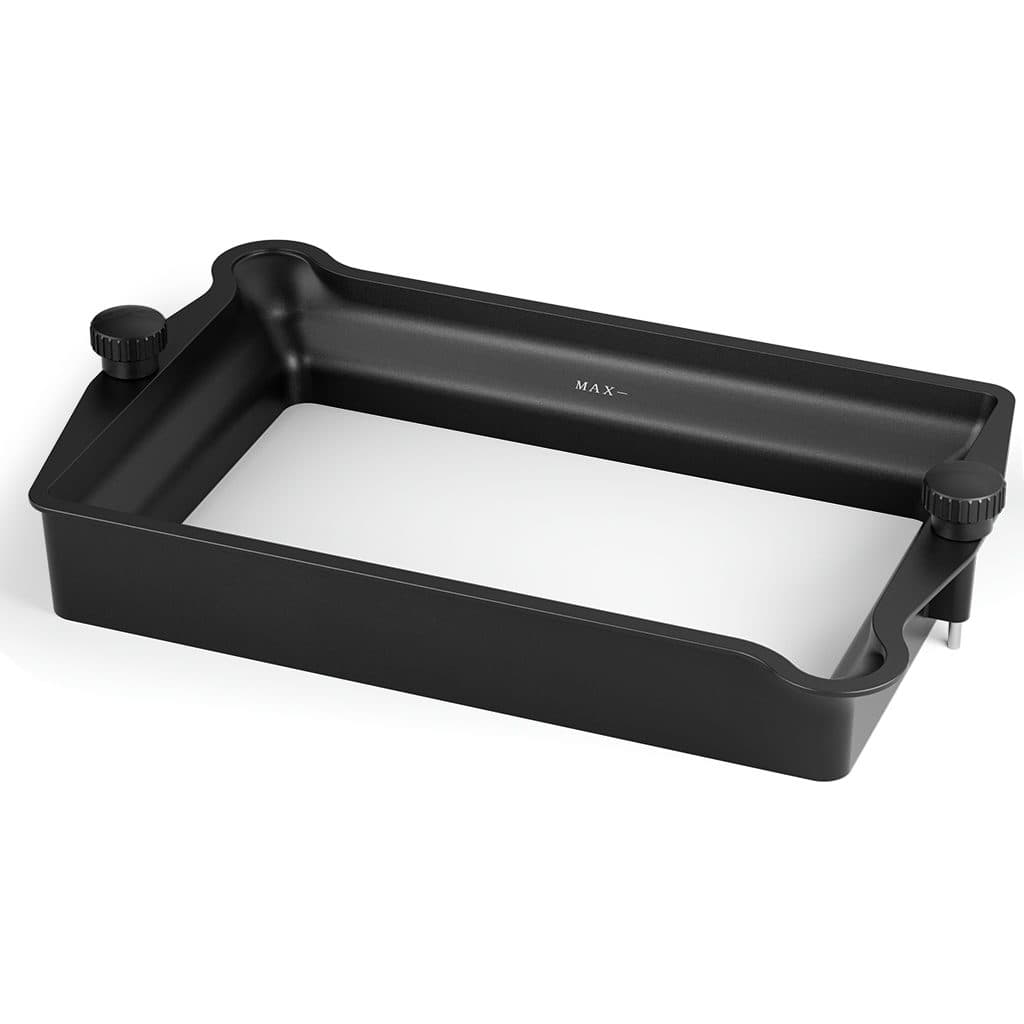

PFA film. It's the same as the Saturn 2, Saturn 3, Saturn 4 release films.
Yes, it's compatible. However, it is not recommended to use ACF film on this machine. The Saturn 4 Ultra printer utilizes a new tilt-release technology that enables fast printing without the need for ACF. Moreover, it delivers excellent print quality. Addition, ACF film is not helpful for tilt release, only the pull-up type of release will help. Therefore, we recommend using PFA film instead.
Real-Time Monitoring; Empty Build Plate Detection; Time-Lapse Photography; Warp Detection.
You can use this function in CHITUBOX 2.0. Lychee slicer may support this function soon.
Due to the absence of built-in lighting in the camera, the image may appear slightly blurry in low light conditions such as during nighttime or when the room lights are off. This design was made to avoid potential interference caused by additional lighting during the printing process, as well as to mitigate the impact of resin reflections on the camera's AI detection capabilities. Therefore, an internal lighting feature was not included. In addition, we do not recommend adding lighting to the machine on your own.
No, it can only be viewed online in real-time. If necessary, time-lapse photography can be viewed.
It means that the camera is connected and can be viewed in real-time, but it does not indicate that time-lapse photography is enabled. To enable or disable it, you need to set in the Chitu Manager.
No, it's not necessary to keep them open, and closing the Chitu Box software or shutting down the computer will not affect the time-lapse shooting.
Buying the machine is one route. These divisions run this class of equipment as a service, so you brief the outcome instead of operating it.
10 things worth knowing
01The Elegoo Saturn 4 UItra adopts tilt release technology, which enables the model to be peeled off from the release film quickly by tilting the resin tank, achieving a fast printing speed up to 150mm/h.
02With a 10-inch 12K mono LCD, the Saturn 4 Ultra boasts an incredible resolution of 11520x5120 and an XY resolution of 19x24μm, presenting you exquisite models with stunning clarity and precision.
03405nm
When the COB light source emits light at 405nm with the combination of Fresnel collimating lens, it can achieve an ultra-low astigmatism coefficient of 0.5%, an exceptional field uniformity of 92%, and a precise angle deviation control below 5° on the forming surface, realizing accurate and even printing results with delicate finishing and intricate details.
04The Saturn 4 Ultra brings hassle-free experience with its smart self-check and automatic leveling function. Simply unbox, power on, and print, making it ultimate printing experience.
05With one single click, the Saturn 4 Ultra will perform a quick self-check to verify whether its components are working properly before your printing starts.

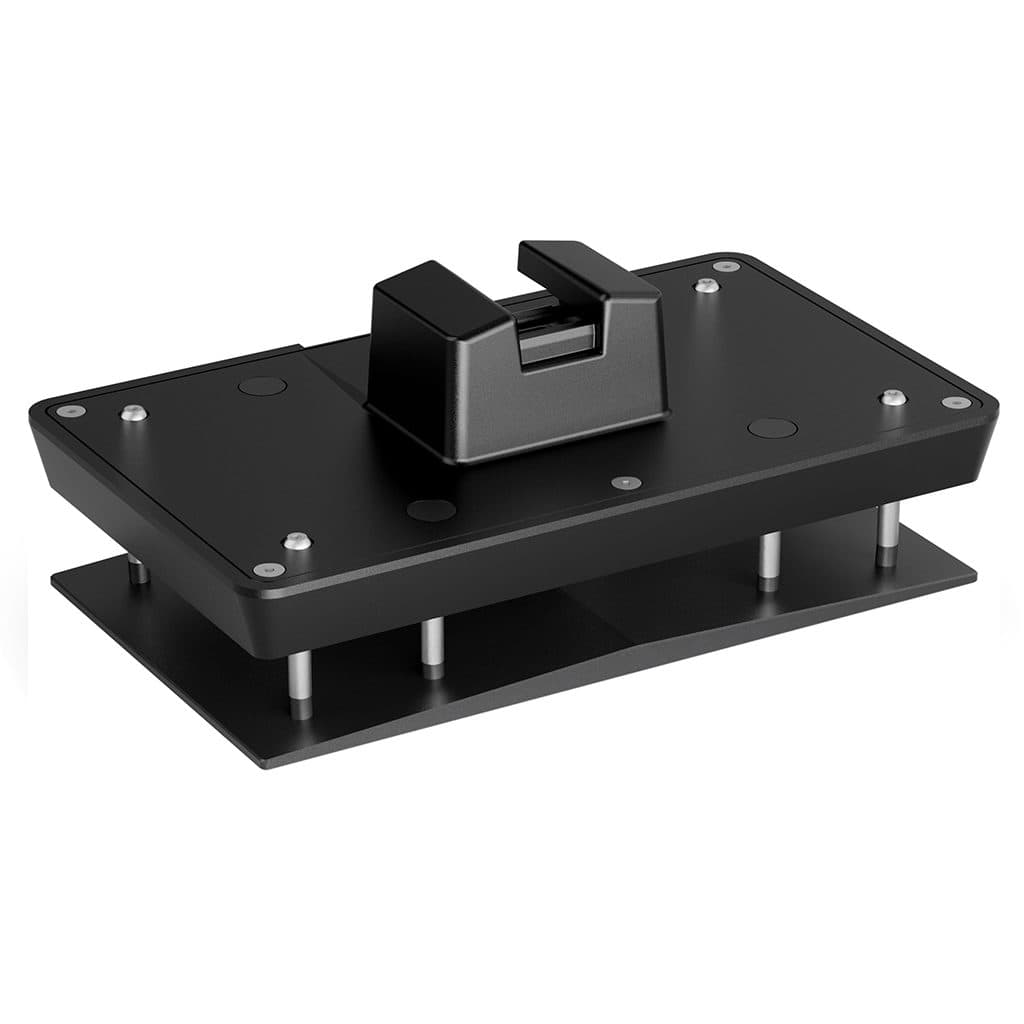

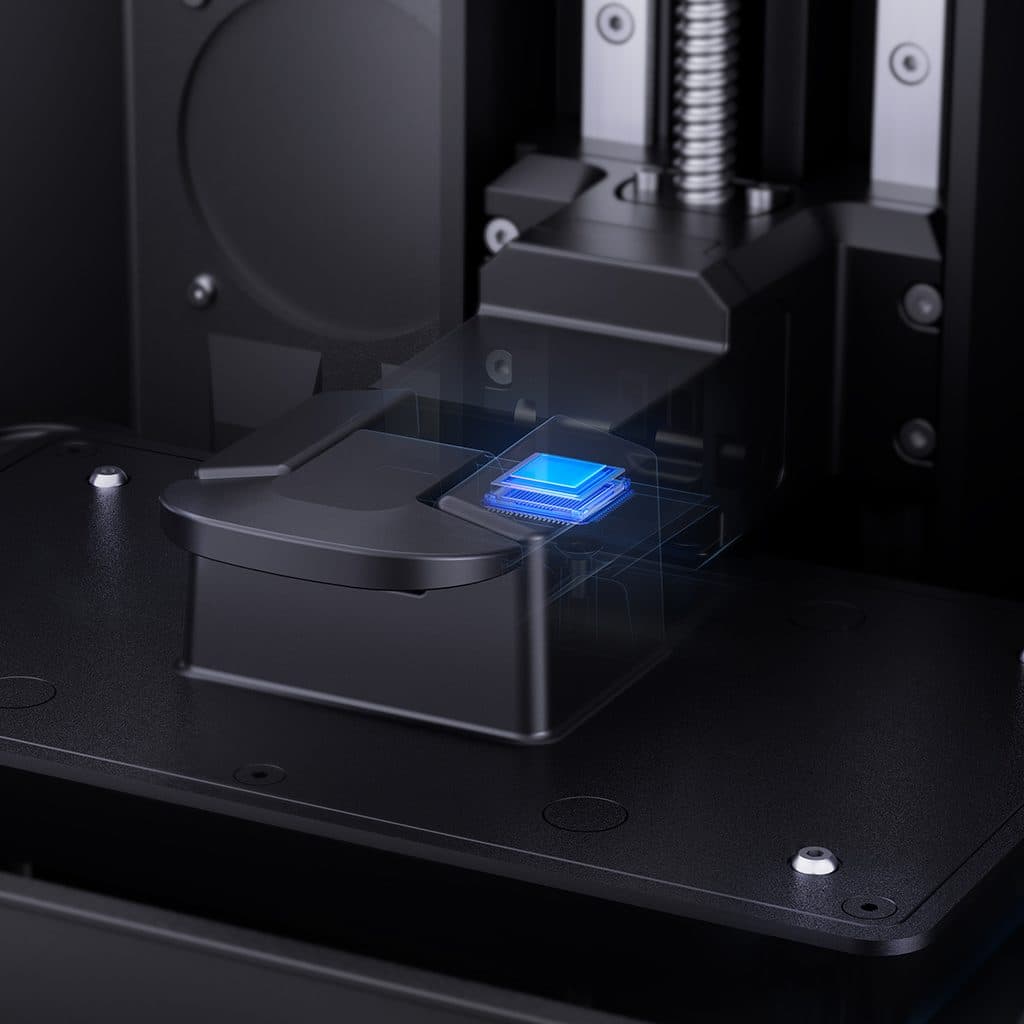

06Thanks to its intelligent mechanical sensor, the build plate will be automatically leveled every time once you click the button, saving your time and efforts.
