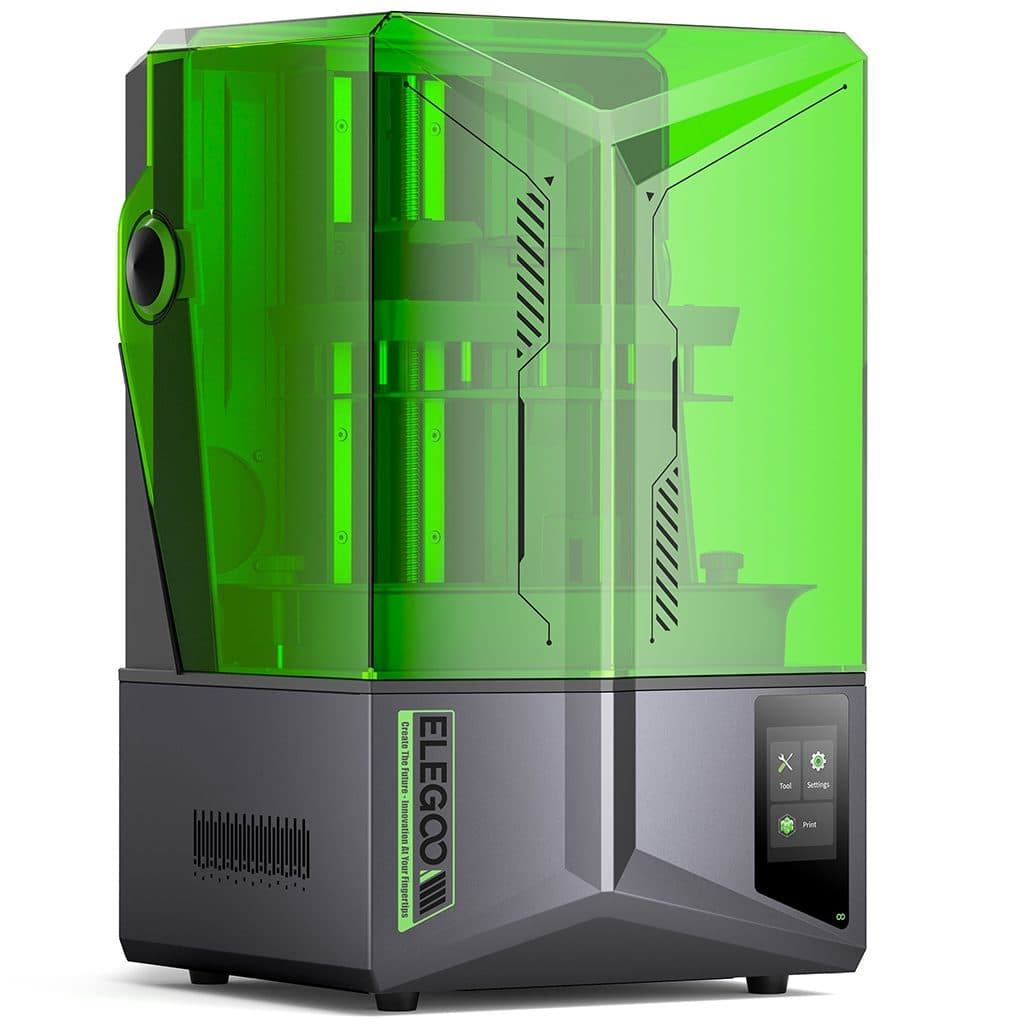

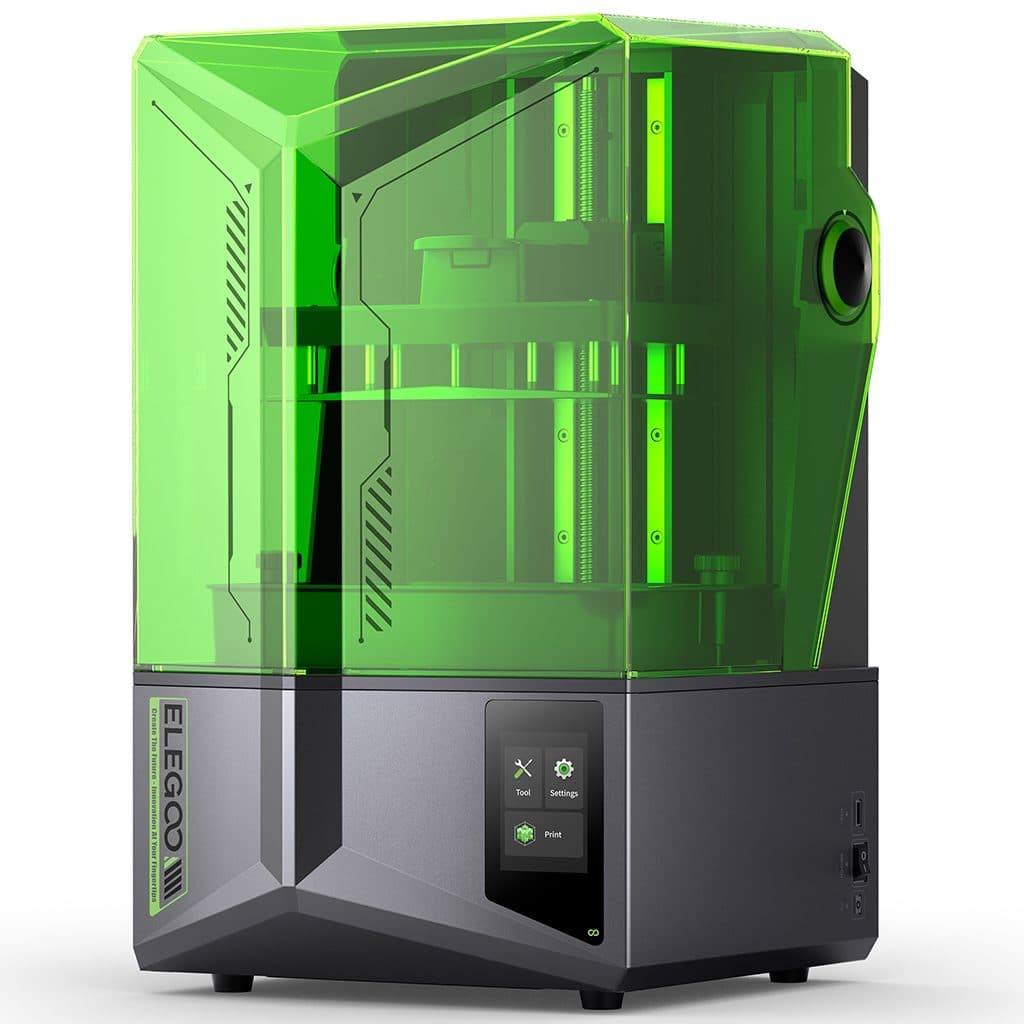

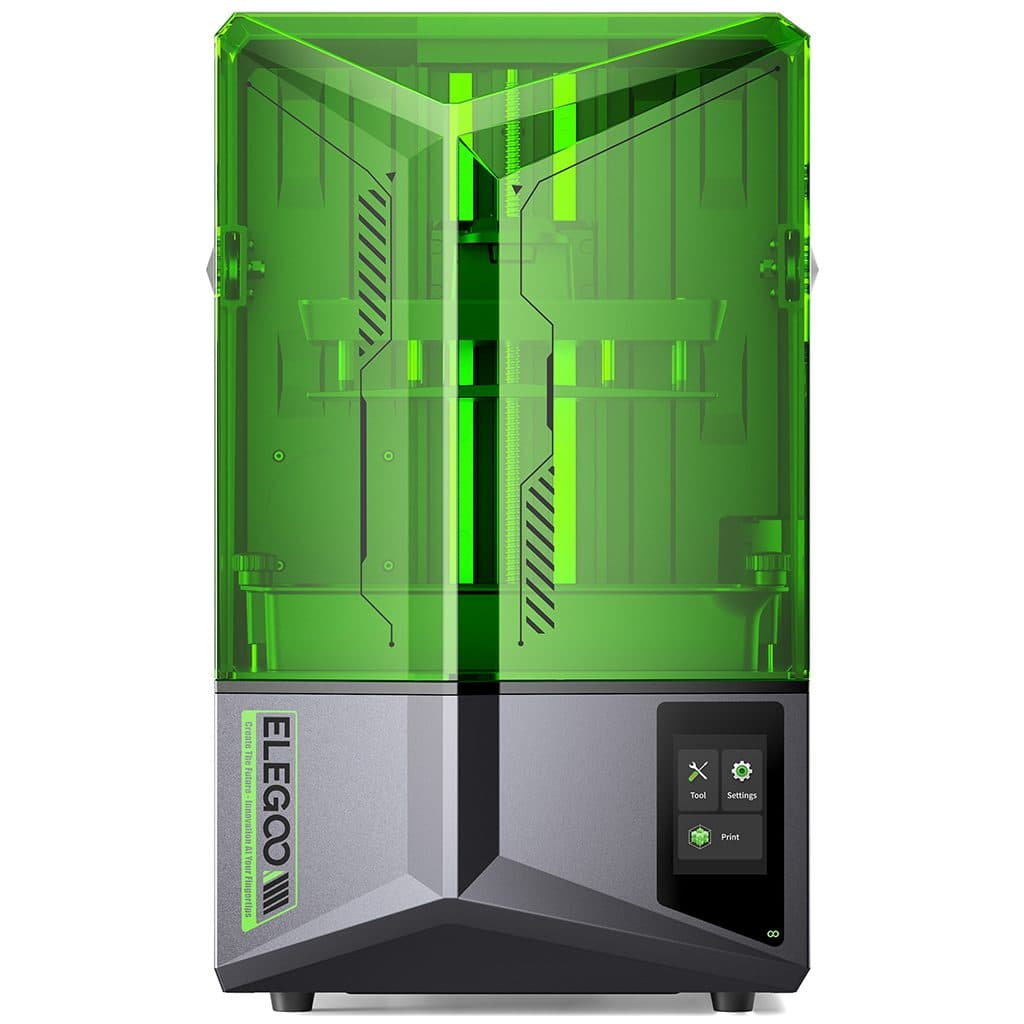

0112K Mono LCD For Excellent Details Reproduction
With a 10-inch 12K mono LCD, the Saturn 4 boasts an incredible resolution of 11520x5120 and an XY resolution of 19x24μm, presenting you exquisite models with stunning clarity and precision.
ELEGOO · Resin Printers

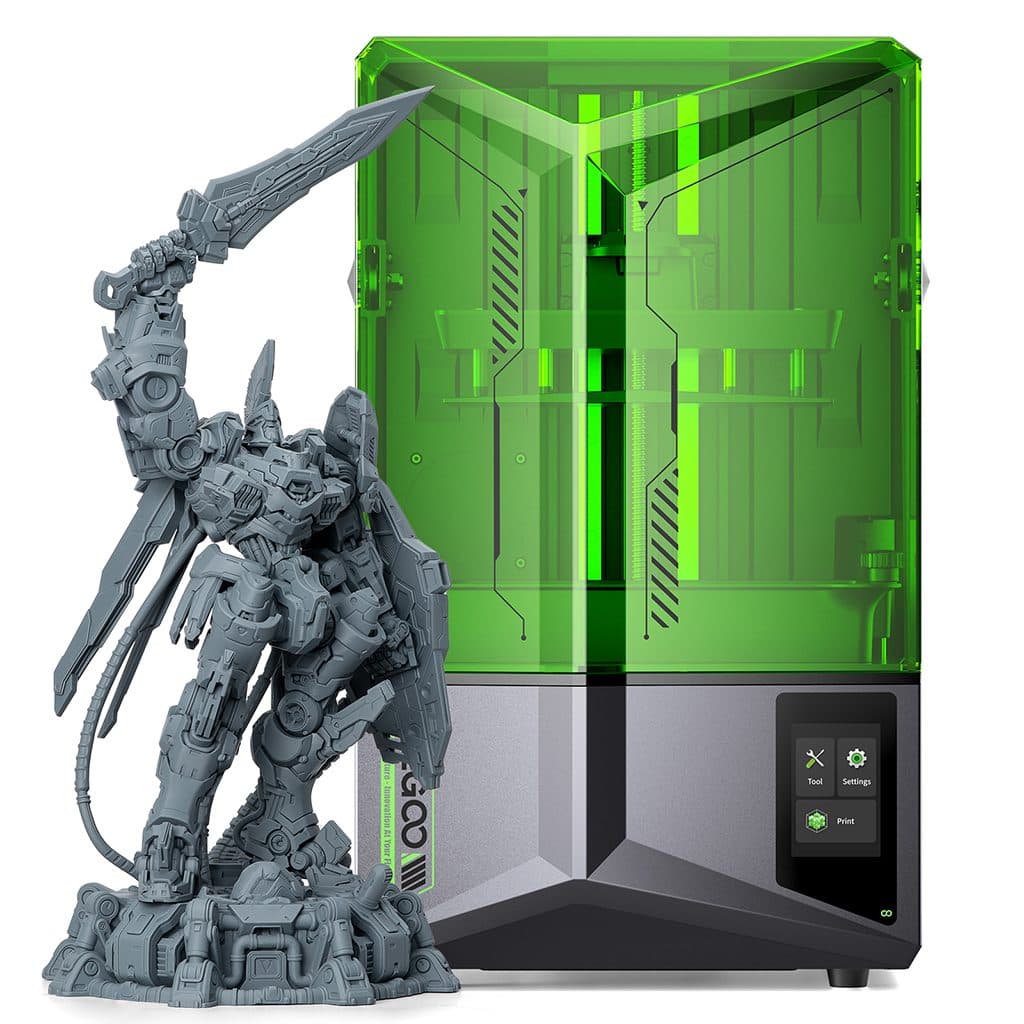

The Saturn 4 boasts a wide range of applications, from toys and collectibles to medical, industrial, architectural and more projects.
1 / 7Max 150 mm / h
Print speed
19*24um (11520*5120)
Resolution
10-inch 12K Mono LCD
Screen
0.01-0.2mmPrinting Speed（MAX.）: 150mm / H
Layer height
The Saturn 4 boasts a wide range of applications, from toys and collectibles to medical, industrial, architectural and more projects. It is proven to provide unrivalled precision and versatility across every print, great for turning ideas into reality for any application.
The machine, crated
With its standard tooling, cabling and starter consumables.
Commissioning on site
Assembled, levelled, calibrated and run to a first accepted part.
Operator handover
A working session with whoever will actually run it, not a manual.
Support after the invoice
Consumables, spares and a person who has seen this machine before.
Saturn 4 Unboxing [email protected] (Commercial use allowed, need to add Credit)
Maple Candy mold, Saturn 4, [email protected] (Commercial use allowed, need to add Credit)
Saturn 4 Chocolate Mould [email protected] (Commercial use allowed, need to add Credit)
PFA film. It's the same as the Saturn 2, Saturn 3, Saturn 4 release films.
Yes, it's compatible. However, it is not recommended to use ACF film on this machine. The Saturn 4 Ultra printer utilizes a new tilt-release technology that enables fast printing without the need for ACF. Moreover, it delivers excellent print quality. Addition, ACF film is not helpful for tilt release, only the pull-up type of release will help. Therefore, we recommend using PFA film instead.
Real-Time Monitoring; Empty Build Plate Detection; Time-Lapse Photography; Warp Detection.
You can use this function in CHITUBOX 2.0. Lychee slicer may support this function soon.
Due to the absence of built-in lighting in the camera, the image may appear slightly blurry in low light conditions such as during nighttime or when the room lights are off. This design was made to avoid potential interference caused by additional lighting during the printing process, as well as to mitigate the impact of resin reflections on the camera's AI detection capabilities. Therefore, an internal lighting feature was not included. In addition, we do not recommend adding lighting to the machine on your own.
No, it can only be viewed online in real-time. If necessary, time-lapse photography can be viewed.
It means that the camera is connected and can be viewed in real-time, but it does not indicate that time-lapse photography is enabled. To enable or disable it, you need to set in the Chitu Manager.
No, it's not necessary to keep them open, and closing the Chitu Box software or shutting down the computer will not affect the time-lapse shooting.
Buying the machine is one route. These divisions run this class of equipment as a service, so you brief the outcome instead of operating it.
10 things worth knowing
01With a 10-inch 12K mono LCD, the Saturn 4 boasts an incredible resolution of 11520x5120 and an XY resolution of 19x24μm, presenting you exquisite models with stunning clarity and precision.
02405nm
When the COB light source emits light at 405nm with the combination of Fresnel collimating lens, it can achieve an ultra-low astigmatism coefficient of 0.5%, an exceptional field uniformity of 92%, and a precise angle deviation control below 5° on the forming surface, realizing accurate and even printing results with delicate finishing and intricate details.
03With its intelligent self-check and auto-leveling features, the Saturn 4 delivers a worry-free experience. Simply unbox, power on, and print: the printing experience has never been this effortless.
04With one single click, the Saturn 4 will perform a quick self-check to ensure all its components are working properly before your printing starts.
05Thanks to its intelligent mechanical sensor, leveling the build plate has become a breeze every time once you click the button, saving your time and efforts.
06Equipped with a mechanical sensor, the Saturn 4 supports residue detection to prevent damage to the LCD screen, as well as resin shortage and leveling failure alarm to further enhance the safety and reliability during printing.
